Description

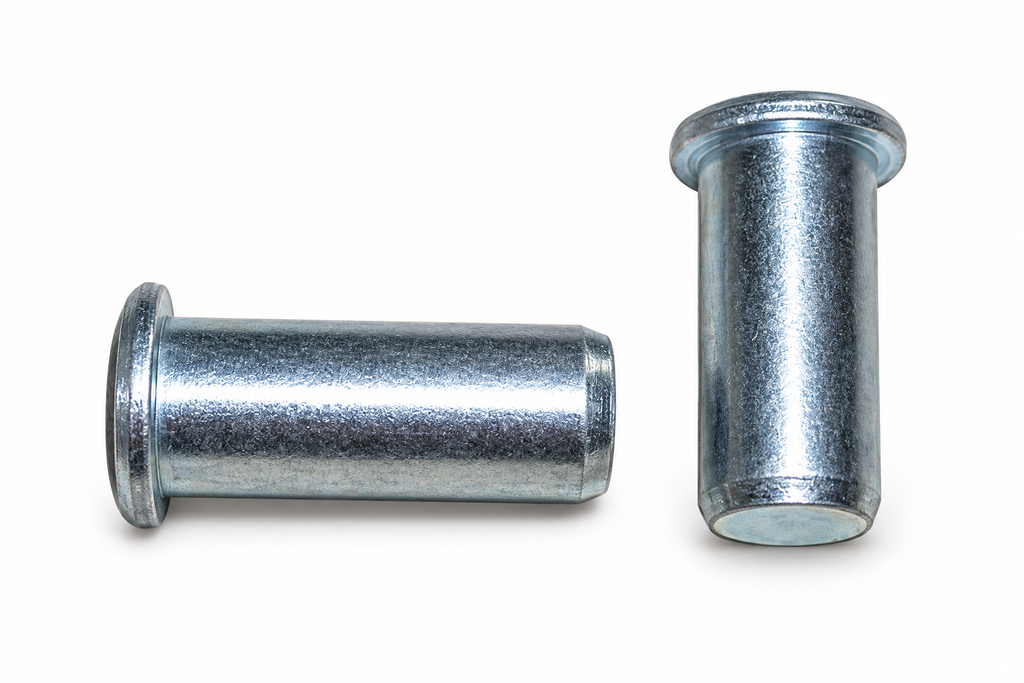

Pair of replacement brake shoe pins for selected Zetor tractors fitted with the corresponding drum braking system.
These metal pins are designed to locate and support the brake shoes within the brake assembly, providing a secure mounting point for the brake shoe mechanism.
Suitable for replacing worn, damaged or corroded original brake shoe pins during routine maintenance or brake repairs.
Part Numbers
-
Zetor: 995630
-
Alternative reference: 99-5630
-
Additional cross-reference: 54660352
Specifications
-
Component: Brake shoe retaining / pivot pin
-
Application: Tractor drum braking system
-
Nominal pin diameter: 20 mm
-
Nominal pin length: 45 mm
-
Design: Cylindrical pin with flanged head
-
Construction: Metal
-
Finish: Silver-coloured metal
-
Quantity: 2 identical pins
The 20 x 45 mm dimensions are the supplier-listed nominal pin specifications. Please check against your original components before ordering.
Suitable for Zetor Models
Zetor UR I – Earlier Models
-
2011, 2511
-
3011, 3511
-
4011, 4511
-
4712, 4718
-
4911, 5011
-
5511, 5545
-
5611, 5645, 5647
-
5711, 5718, 5745, 5748
-
5911, 5945
-
6011, 6045
-
6711, 6718
-
6911, 6945
-
7011, 7045
Zetor UR I – Later Models
-
5211, 5245
-
6211, 6245
-
7211, 7245
-
7711, 7745
Zetor 40 Series
-
3320, 3340
-
4320, 4340
-
5320, 5340
-
6320, 6340
-
7320, 7340
Suitable for selected tractors fitted with the corresponding drum brake shoe mounting arrangement.
Compatibility depends on tractor model, production year and braking system specification.
Quantity
1 x Pair of brake shoe pins containing:
-
2 x Brake shoe pins – 995630
Total: 2 identical brake shoe pins.
Important Fitment Information
Zetor tractors can be fitted with different drum and disc braking systems depending on model, production year and specification.
These pins are intended for compatible brake shoe assemblies using the corresponding 20 x 45 mm retaining pins.
Please check Zetor part number 995630, the pin diameter, length, flanged head dimensions and photographs against your existing components before ordering.
This listing is for TWO brake shoe pins only. Additional brake components, retaining clips, brake shoes and springs are not included.
Some brake assemblies require more than two pins. Please check the quantity needed for your particular tractor before ordering.
As these components form part of the braking system, correct installation and inspection are essential. The brakes should be thoroughly checked and tested before returning the tractor to operation.
If you are unsure about compatibility, please contact us with your tractor model, serial number and photographs or dimensions of the existing brake shoe pins and mounting arrangement.
