Description

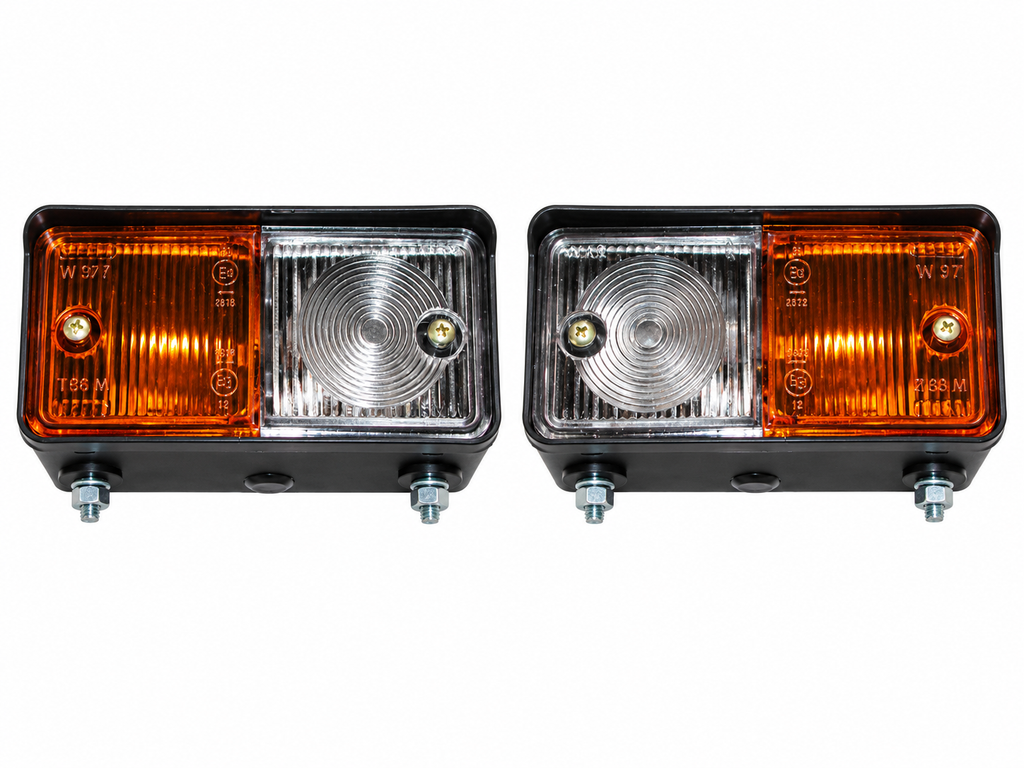

Replacement pair of front side and indicator lamps for selected Zetor Crystal tractors fitted with the corresponding front lighting arrangement.
These combined lamps feature an amber indicator section and clear sidelight section, providing both direction indication and front position lighting.
The set contains one left-hand and one right-hand lamp, with the coloured lens sections arranged in opposite directions for the correct fitment on either side of the tractor.
Suitable for replacing damaged, cracked, faded or non-functioning original lamps.
Replacement Part Numbers
-
Zetor right-hand lamp: 80350986
-
Zetor left-hand lamp: 80350987
-
Alternative right-hand reference: 80.350.986
-
Alternative left-hand reference: 80.350.987
Specifications
-
Component: Front sidelight and indicator lamp assembly
-
Application: Tractor front lighting system
-
Lamp type: Combined sidelight / direction indicator
-
Lens colours: Amber / Clear
-
Construction: Plastic lens with black lamp housing
-
Mounting: Two-stud mounting arrangement
-
Approximate lamp length: 150 mm
-
Approximate lamp height: 70 mm
-
Approximate lamp depth: 77 mm
-
Fixing stud centres: Approximately 55 mm
-
Fitment: Handed – one left-hand and one right-hand lamp
-
Quantity: 2 complete lamp assemblies
Dimensions are based on equivalent supplier-listed lamps and should be checked against the actual components before ordering.
Suitable for Zetor Models
Zetor Crystal UR II
-
Zetor 8011
May also suit selected other Zetor Crystal tractors fitted with the same front lamp arrangement, subject to checking the original lamps and mounting configuration.
Function
Each lamp provides two separate front lighting functions:
-
Amber indicator – signals the tractor's intended direction of travel
-
Clear sidelight – provides front position lighting when the tractor's lighting circuit is activated
The handed lamp arrangement positions the amber and clear sections correctly on the corresponding sides of the tractor.
Quantity
1 x Pair of front side and indicator lamps containing:
-
1 x Right-hand lamp – 80350986
-
1 x Left-hand lamp – 80350987
Total: 2 complete front lamp assemblies.
Please check whether bulbs are supplied with the lamps before ordering.
Important Fitment Information
Zetor tractors can be fitted with different front side and indicator lamp assemblies depending on model, production year, cab design and electrical specification.
These lamps are handed and are supplied as a matching left-hand and right-hand pair.
Please check Zetor part numbers 80350986 and 80350987, the lens arrangement, voltage, mounting stud spacing, overall dimensions, electrical connections and photographs against your existing lamps before ordering.
These lamps should not be confused with the different flush-mounted or short-type front indicator lamps fitted to other Zetor tractors.
If you are unsure about compatibility, please contact us with your tractor model, serial number and photographs of your existing lamps and mounting arrangement.
