Description

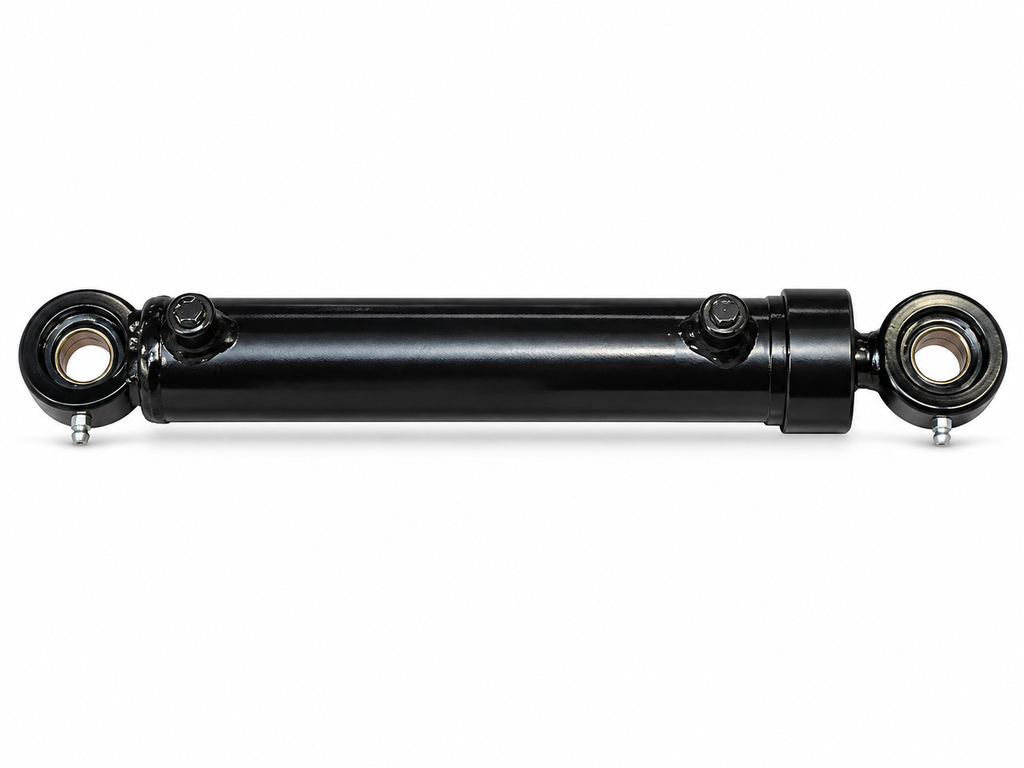

Replacement hydraulic power steering ram for selected Zetor 4WD tractors fitted with the corresponding front axle steering arrangement.
This hydraulic steering cylinder is designed to assist with the operation of the tractor's power steering system, helping provide smooth and controlled steering movement.
Designed for installation on the Right-Hand (RH) side of the front axle on compatible Zetor tractors.
Part Numbers
-
Zetor: 72453770
-
Alternative part number format: 7245-3770
Specifications
-
Component: Hydraulic power steering ram
-
Application: Front axle power steering system
-
Mounting position: Right-Hand (RH) side of front axle
-
Minimum length: Approximately 410 mm
-
Maximum length: Approximately 615 mm
-
Cylinder outside diameter: Approximately 60 mm
-
Piston rod diameter: Approximately 25 mm
-
Mounting: Eye-type connections at both ends
-
Finish: Black
-
Approximate weight: 6 kg
Dimensions are supplier-listed specifications and should be checked against the original cylinder before ordering.
Suitable for Zetor Models
Zetor UR I – 4WD Models
-
6245
-
7245
-
7745
Zetor 40 Series – 4WD Models
-
3340
-
4340
-
5340
-
6340
-
7340
These applications are subject to the tractor being fitted with the corresponding power steering cylinder and front axle arrangement.
Quantity
1 x Complete power steering ram assembly.
Important Fitment Information
Zetor tractors can be fitted with different power steering systems and front axle arrangements depending on model, year of manufacture and specification.
This ram is intended for compatible tractors using the corresponding Right-Hand mounted hydraulic steering cylinder.
Please check Zetor part number 72453770, overall length, cylinder diameter, hydraulic connections, mounting eye dimensions and photographs against your existing component before ordering.
This power steering ram should not be confused with the different steering cylinders fitted to selected Zetor 2WD tractors or later UR III models.
If you are unsure about compatibility, please contact us with your tractor model, serial number, axle type and photographs of the existing steering ram or components.
