Description

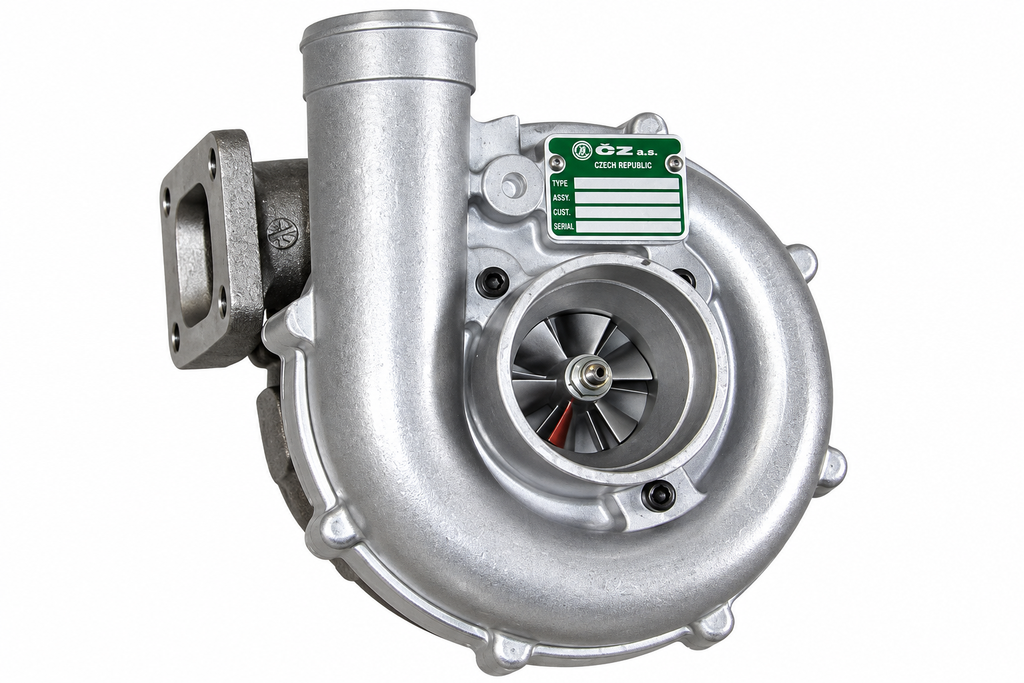

Replacement K27-2960U turbocharger for selected four-cylinder Zetor Crystal UR II tractors fitted with the corresponding turbocharged diesel engine.
This complete turbocharger assembly is designed to replace the original turbocharger, using energy from the engine's exhaust gases to compress incoming air and supply additional air to the engine.
Suitable for replacing a worn, damaged or failed original turbocharger on compatible Zetor and ZTS tractors.
Part Numbers
-
Zetor: 83022907
-
Alternative reference: 83.022.907
-
Replaces Zetor: 83022904
-
Alternative reference: 83.022.904
-
Turbocharger model: K27-2960U
-
Alternative turbo designation: K27-2960U/6.11
Specifications
-
Component: Engine turbocharger assembly
-
Application: Tractor engine air induction and exhaust system
-
Turbocharger type: K27
-
Turbocharger specification: 2960U
-
Engine application: Selected four-cylinder diesel engines
-
Tractor series: Zetor Crystal UR II / ZTS
-
Drive: Exhaust gas-driven turbine
-
Construction: Cast-metal turbine housing and compressor assembly
-
Approximate weight: 8.8–9 kg
-
Quantity: 1 complete turbocharger assembly
The weight is based on specialist supplier specifications.
Suitable for Zetor Models
Zetor Crystal UR II – 4 Cylinder
-
Zetor 9111
-
Zetor 9145
-
Zetor 9211
-
Zetor 9245
-
Zetor 10011
-
Zetor 10045
-
Zetor 10211
-
Zetor 10245
These models are listed by specialist suppliers for the corresponding K27 turbocharger arrangement. Fitment is conditional on the tractor having the correct turbocharged engine specification.
Zetor ZTS / Ursus
Also suitable for selected compatible four-cylinder ZTS and Ursus engines, including some C-385, 1012 and 1014 applications fitted with the corresponding K27 turbocharger.
Function
The turbocharger uses exhaust gas energy to drive a turbine connected to a compressor.
The compressor increases the amount of air entering the engine, supporting efficient combustion and the engine's designed power output.
A correctly functioning turbocharger is important for maintaining engine performance and efficiency.
Quantity
1 x Complete turbocharger assembly – 83022907.
Oil feed pipes, oil return pipes, mounting gaskets, bolts and additional fittings are not included unless specifically supplied with the item.
Important Fitment Information
Zetor Crystal tractors can be fitted with different turbochargers depending on tractor model, production year, engine type and specification.
This turbocharger is intended for compatible four-cylinder Zetor Crystal and ZTS engines fitted with the corresponding K27-2960U turbocharger arrangement.
Please check Zetor part number 83022907 or 83022904, the turbocharger identification plate, turbine housing, compressor housing, oil connections, mounting flanges and photographs against your original turbocharger before ordering.
This turbocharger should not be confused with different K27 variants or the C14-series turbochargers fitted to later Zetor tractors.
Before fitting a replacement turbocharger, the engine lubrication system, turbocharger oil feed and return pipes, air intake system and exhaust connections should be checked for contamination, blockages or other faults.
Installation should be carried out in accordance with the appropriate service instructions.
If you are unsure about compatibility, please contact us with your tractor model, serial number, engine details and photographs of the existing turbocharger and identification plate.
