Description
Complete replacement 330 mm clutch kit with bearings for selected Zetor Crystal 8011 and 8045 tractors.
This kit contains the clutch pressure plate assembly, main clutch drive plate, clutch release bearing and spigot bearing required for replacing the corresponding main clutch components.
Designed for early Zetor Crystal UR II tractors fitted with the appropriate 330 mm clutch arrangement.

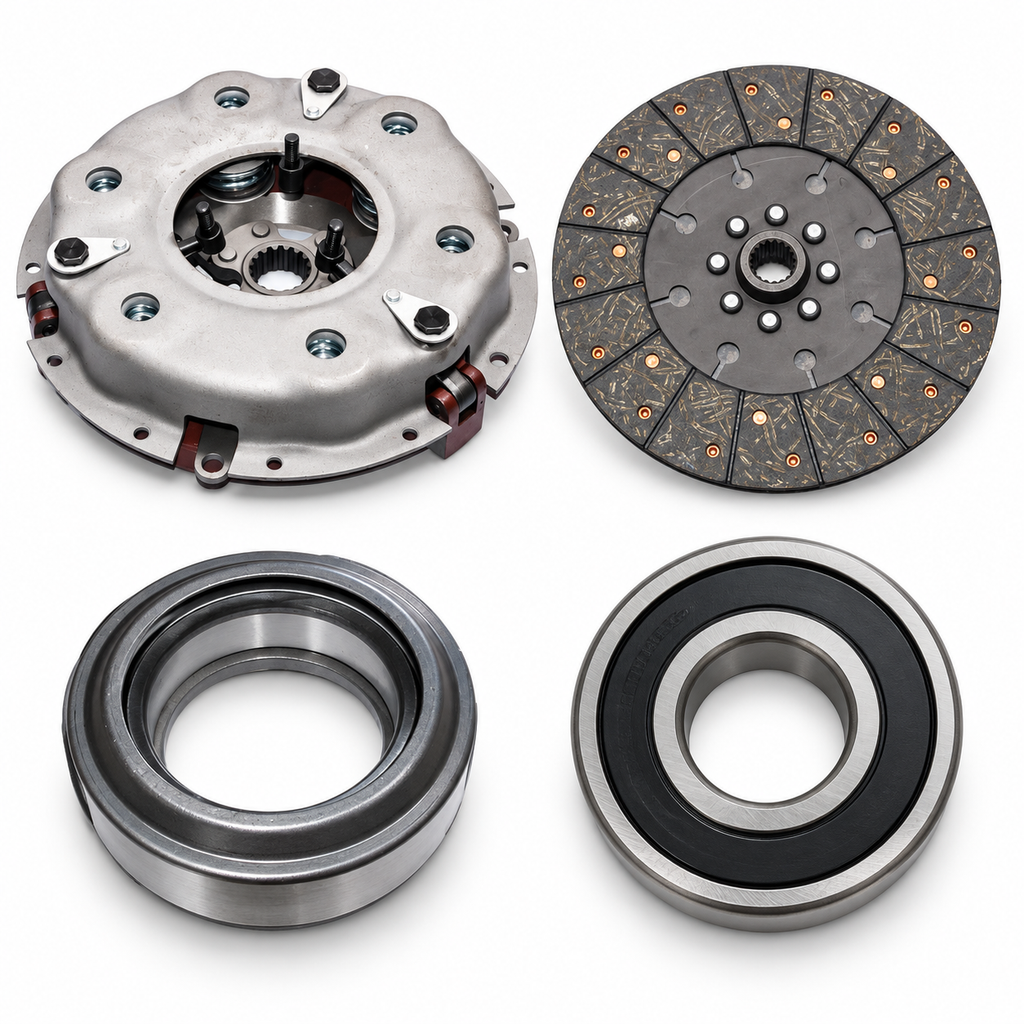

Kit Contents
-

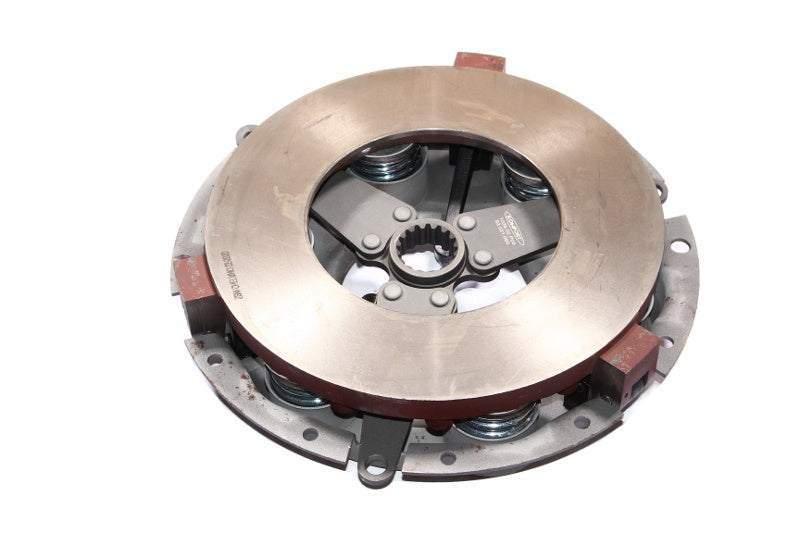

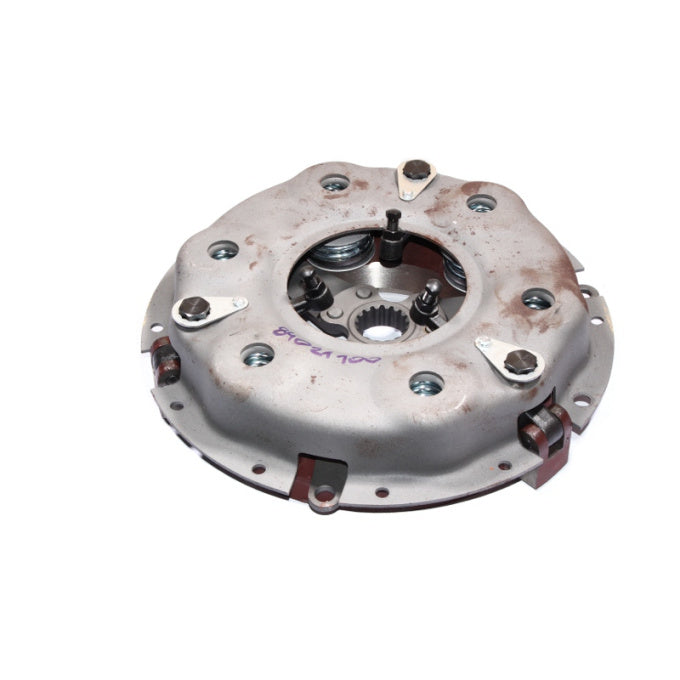

1 x Main clutch pressure plate assembly – 84021100
-

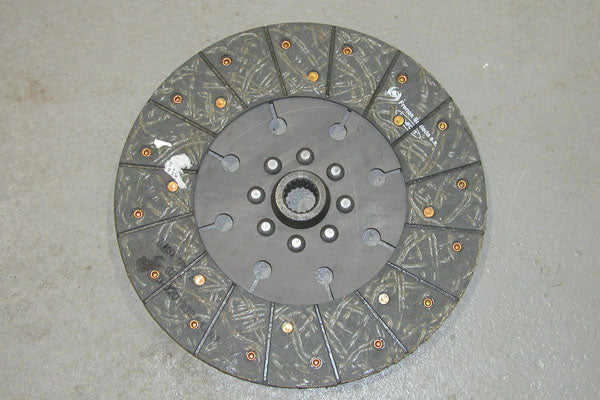

1 x Main clutch drive plate – 80021020
-

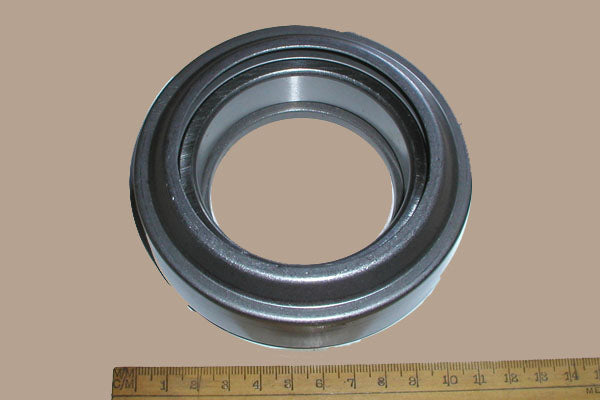

1 x Clutch release bearing – 80108160
-

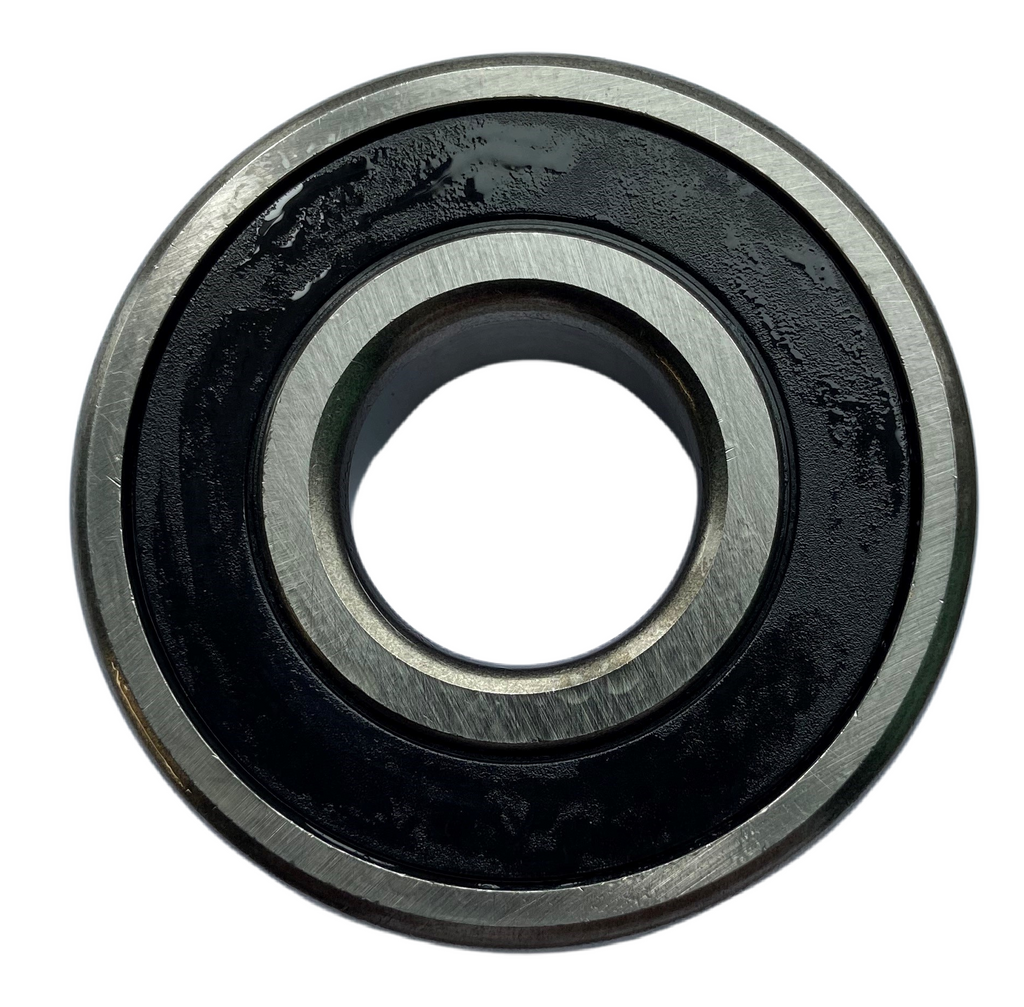

1 x Spigot bearing – 971110
Part Numbers
-
Zetor clutch pressure plate assembly: 84021100
-
Zetor main clutch drive plate: 80021020
-
Zetor clutch release bearing: 80108160
-
Zetor spigot bearing: 971110
Specifications
-
Main clutch drive plate diameter: 330 mm
-
Main clutch drive plate: 18 splines
-
Clutch drive plate friction material: Organic
-
Clutch release bearing outside diameter: 112 mm
-
Clutch release bearing inside diameter: 64 / 70 mm
-
Clutch release bearing height: 35 mm
-
Spigot bearing type: 6304-2RS
-
Spigot bearing dimensions: 20 mm internal diameter x 52 mm external diameter x 15 mm width
-
Kit supplied with clutch release bearing and spigot bearing
Suitable for Zetor Models
Zetor Crystal UR II
-
8011
-
8045
Suitable for tractors fitted with the corresponding 330 mm main clutch assembly.
Suitable for Ursus Models
- Ursus C385
Quantity
1 x Complete clutch kit containing:
-
1 x Main clutch pressure plate assembly
-
1 x Main clutch friction drive plate
-
1 x Main clutch release bearing
-
1 x Spigot bearing
Important Fitment Information
Different clutch assemblies and drive plate arrangements were fitted across the Zetor Crystal range depending on tractor model, production year and clutch specification.
This kit is intended for selected early Zetor Crystal 8011 and 8045 tractors. It should not be assumed suitable for later Crystal tractors fitted with different clutch assemblies.
The kit contains the main clutch components listed above. It does not include a separate PTO clutch friction plate or other parts not specifically listed.
Please check the original part numbers, clutch diameter, spline count, release bearing dimensions and photographs against your existing components before ordering.
If you are unsure about compatibility, please contact us with your tractor model, serial number and photographs of the existing clutch assembly or components.
