Description

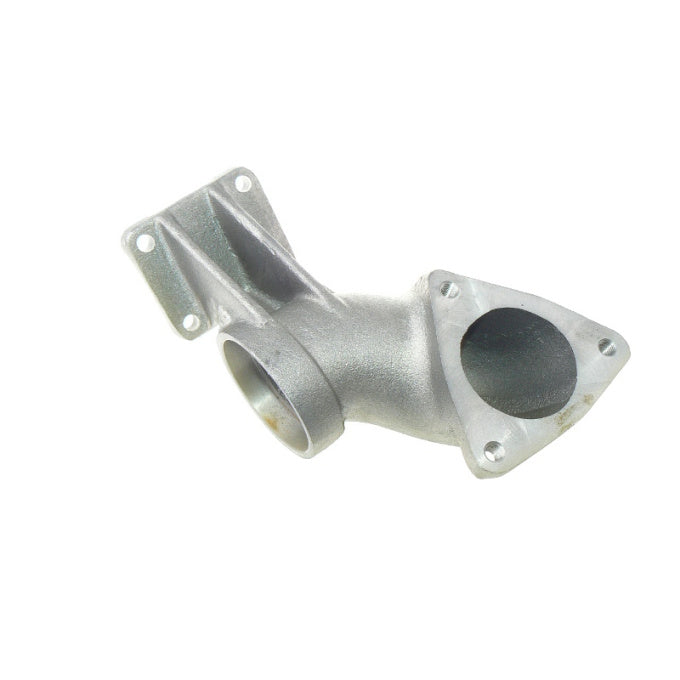

Replacement turbo exhaust elbow for selected Zetor Crystal UR II tractors fitted with the corresponding turbocharged engine and exhaust system.
This cast-metal exhaust elbow is designed to connect the corresponding components within the tractor's turbo exhaust arrangement, directing exhaust gases through the exhaust system.
Suitable for replacing a damaged, cracked, corroded or worn original turbo exhaust elbow on compatible Zetor tractors.
Part Numbers
-
Zetor: 89022005
-
Alternative reference: 89.022.005
-
Alternative reference: 89-022-005
-
Alternative reference: 8902-2005
Specifications
-
Component: Turbo exhaust elbow
-
Application: Tractor turbocharger / exhaust system
-
Tractor series: Zetor Crystal UR II
-
Engine application: Selected 4-cylinder and 6-cylinder turbocharged engines
-
Construction: Cast-metal housing
-
Design: Angled exhaust elbow
-
Mounting: Flanged connection arrangement
-
Approximate weight: 3.77 kg
-
Quantity: 1 exhaust elbow
Suitable for Zetor Models
Zetor Crystal UR II – 4 Cylinder Turbo
-
Zetor 9111
-
Zetor 9145
-
Zetor 10111
-
Zetor 10145
Zetor Crystal UR II – 6 Cylinder Turbo
-
Zetor 14145
-
Zetor 16145
Suitable for selected tractors fitted with the corresponding turbocharger and exhaust elbow arrangement.
Suitable for Ursus Models
Also suitable for selected Ursus C-385 Turbo derivatives fitted with the corresponding exhaust system.
Compatibility must be confirmed against the original exhaust elbow and mounting arrangement.
Function
The turbo exhaust elbow forms part of the engine's exhaust system, providing a connection between the corresponding turbocharger and exhaust components.
Its angled construction allows exhaust gases to be directed through the appropriate exhaust arrangement while accommodating the mounting position of the connected components.
Quantity
1 x Turbo exhaust elbow – 89022005.
Please note: This listing is for the exhaust elbow only. Gaskets, mounting bolts, nuts and other exhaust fittings are not included unless specifically supplied with the item.
Important Fitment Information
Zetor Crystal tractors can be fitted with different turbochargers, exhaust elbows, manifolds and exhaust systems depending on model, production year, engine type and specification.
This exhaust elbow is intended for compatible Zetor Crystal turbocharged engines using the corresponding 89022005 exhaust elbow arrangement.
Please check Zetor part number 89022005, the mounting flange shapes, bolt-hole positions, connection diameters, overall dimensions and photographs against your original exhaust elbow before ordering.
This elbow should not be confused with the different exhaust elbows fitted to naturally aspirated Zetor engines or later Zetor UR III and Forterra tractors.
Correct installation and sealing of the exhaust connections are essential. The exhaust system should be checked for leaks and correct alignment before returning the tractor to operation.
If you are unsure about compatibility, please contact us with your tractor model, serial number, engine details and photographs of the existing turbocharger, exhaust elbow and mounting arrangement.
