Description

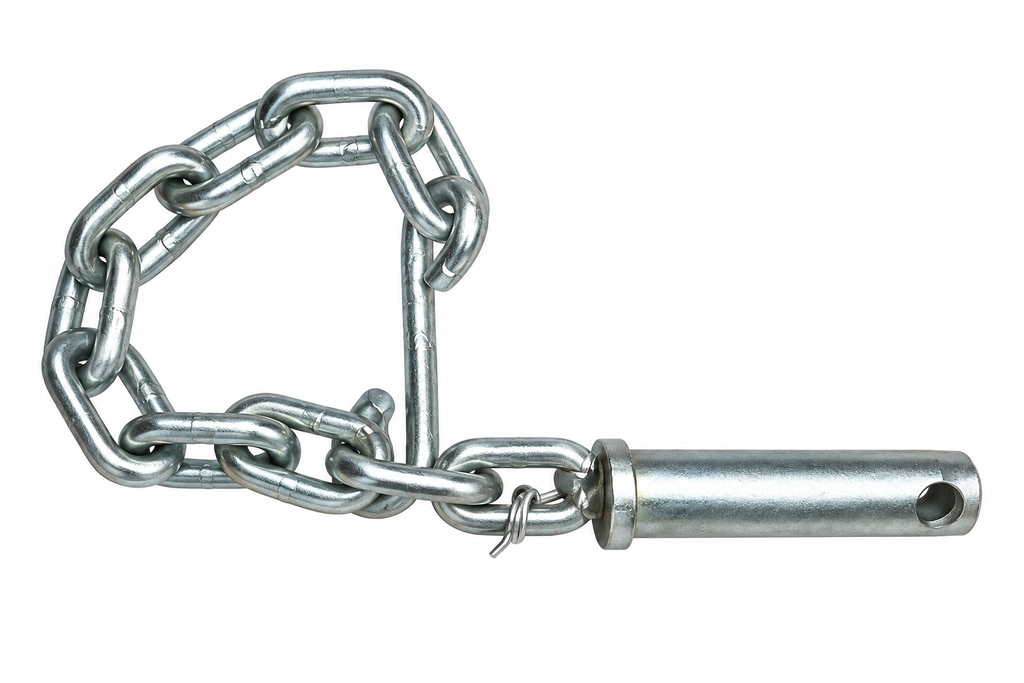

Replacement drop arm pin with retaining chain for selected Zetor tractors fitted with the corresponding rear three-point linkage arrangement.
Also known as a lower linkage pin or bracket pin, this component is designed to secure the relevant rear linkage connection, with an attached retaining chain to help prevent the pin from becoming lost during removal or adjustment.
Suitable for replacing a worn, damaged or missing original pin on compatible Zetor tractors.
Part Numbers
-
Zetor: 55115095
-
Alternative reference: 5511-5095
Specifications
-
Component: Drop arm pin with retaining chain
-
Application: Rear three-point linkage
-
Pin diameter: 19 mm
-
Overall pin length: Approximately 90 mm (estimated from photographs)
-
Construction: Metal pin with attached retaining chain
-
Pin design: Cylindrical with cross-drilled hole
-
Finish: Silver-coloured metal
-
Approximate weight: 0.45 kg (supplier-listed)
-
Quantity: 1 complete pin and chain assembly
Suitable for Zetor Models
Zetor UR I – Earlier Models
-
4712, 4718
-
4911
-
5511, 5545, 5611, 5645, 5647
-
5711, 5718, 5745, 5748
-
5911, 5945
-
6711
-
6911, 6945
Suitable for selected tractors fitted with the corresponding rear linkage mounting bracket and drop arm arrangement.
Application
-
Rear three-point linkage
-
Lower linkage / drop arm connection
-
Replacement linkage retaining pin
-
Supplied with attached retaining chain
Quantity
1 x Drop arm pin with retaining chain.
Important Fitment Information
Zetor tractors can be fitted with different rear linkage pins, brackets and mounting arrangements depending on model, production year and specification.
Please check Zetor part number 55115095, the pin diameter, overall length, mounting arrangement and photographs against your original component before ordering.
This pin should not be confused with the different top link pins, drawbar pins or other linkage retaining pins fitted to Zetor tractors.
The 90 mm overall length is an approximate measurement taken from photographs and should be confirmed against the original part.
If you are unsure about compatibility, please contact us with your tractor model, serial number and photographs or dimensions of the existing linkage pin and mounting bracket.
