Zetor Major 80 Complete Clutch Kit – 280 mm with Bearings – 93942026
Zetor Major 80 Complete Clutch Kit – 280 mm with Bearings – 93942026
Zetor Major 80 Complete Clutch Kit – 280 mm with Bearings – 93942026
Zetor Major 80 Complete Clutch Kit – 280 mm with Bearings – 93942026
Zetor Major 80 Complete Clutch Kit – 280 mm with Bearings – 93942026
Roll over image to zoom in Click on image to zoom
Zetor Major 80 Complete Clutch Kit – 280 mm with Bearings – 93942026
Zetor Major 80 Complete Clutch Kit – 280 mm with Bearings – 93942026
Zetor Major 80 Complete Clutch Kit – 280 mm with Bearings – 93942026
Zetor Major 80 Complete Clutch Kit – 280 mm with Bearings – 93942026
Zetor Major 80 Complete Clutch Kit – 280 mm with Bearings – 93942026

Zetor Major 80 Complete Clutch Kit – 280 mm with Bearings – 93942026

Roy Perfect LTD
No reviews
Price:
£860.00
Stock:
In stock

Description

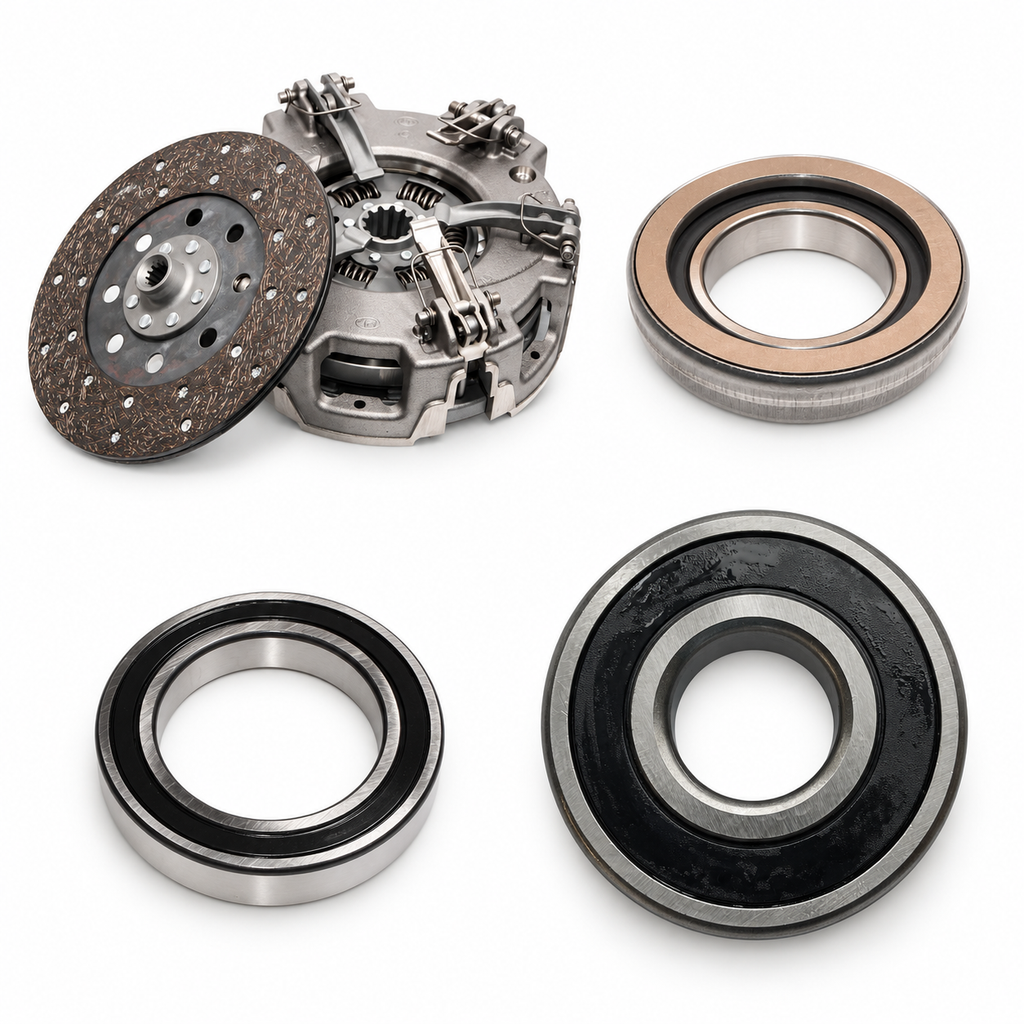

Complete replacement clutch kit with bearings for Zetor Major 80 tractors fitted with the corresponding 280 mm clutch assembly.

This kit contains the clutch pressure plate and main drive plate assembly, first-stage clutch release bearing, second-stage clutch release bearing and spigot bearing required for replacing the relevant clutch components.

Kit Contents

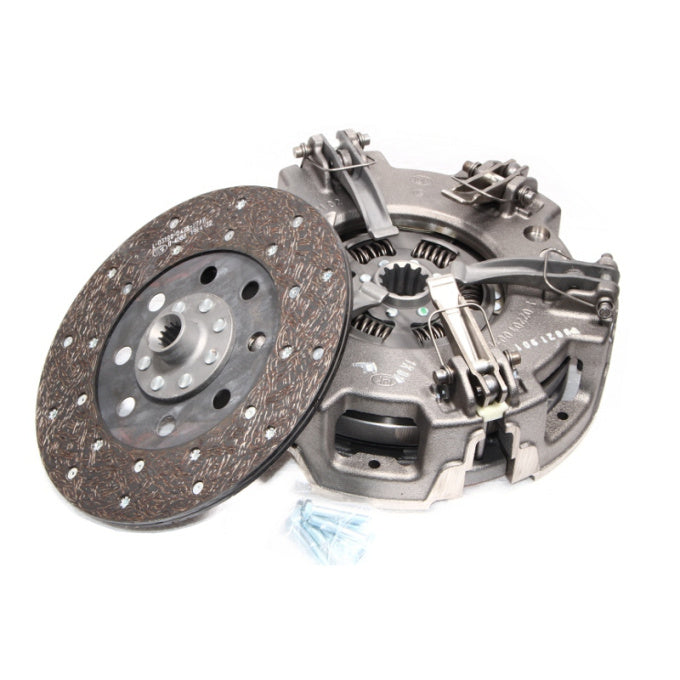

  • 1 x Complete clutch pressure plate and drive plate assembly – 93942026

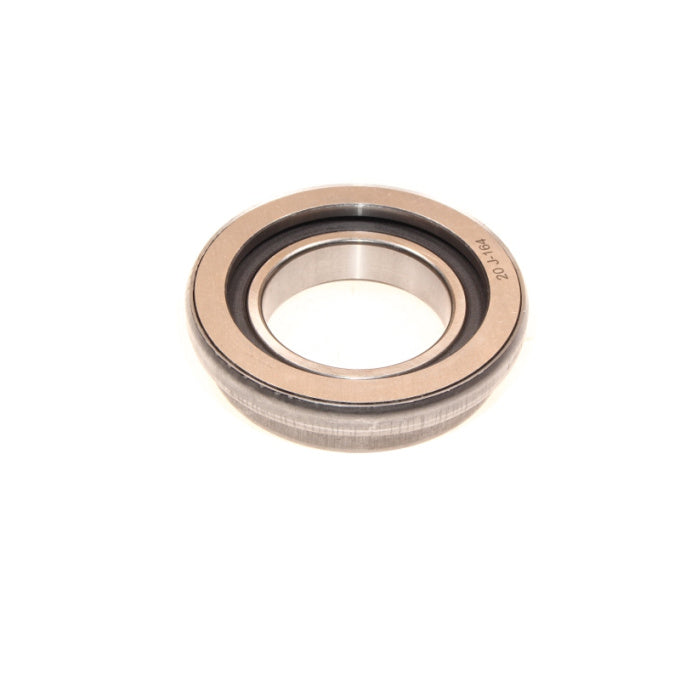

  • 1 x Second-stage / PTO clutch release bearing – 934825

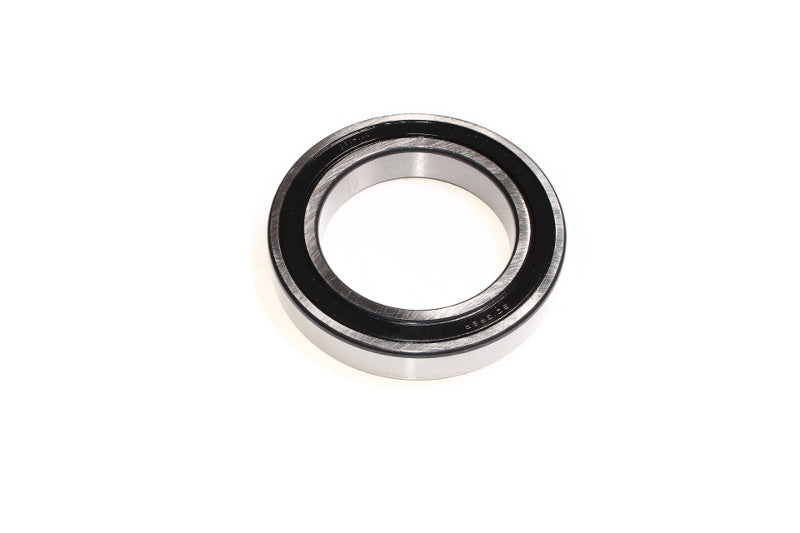

  • 1 x First-stage / main clutch release bearing – 935172

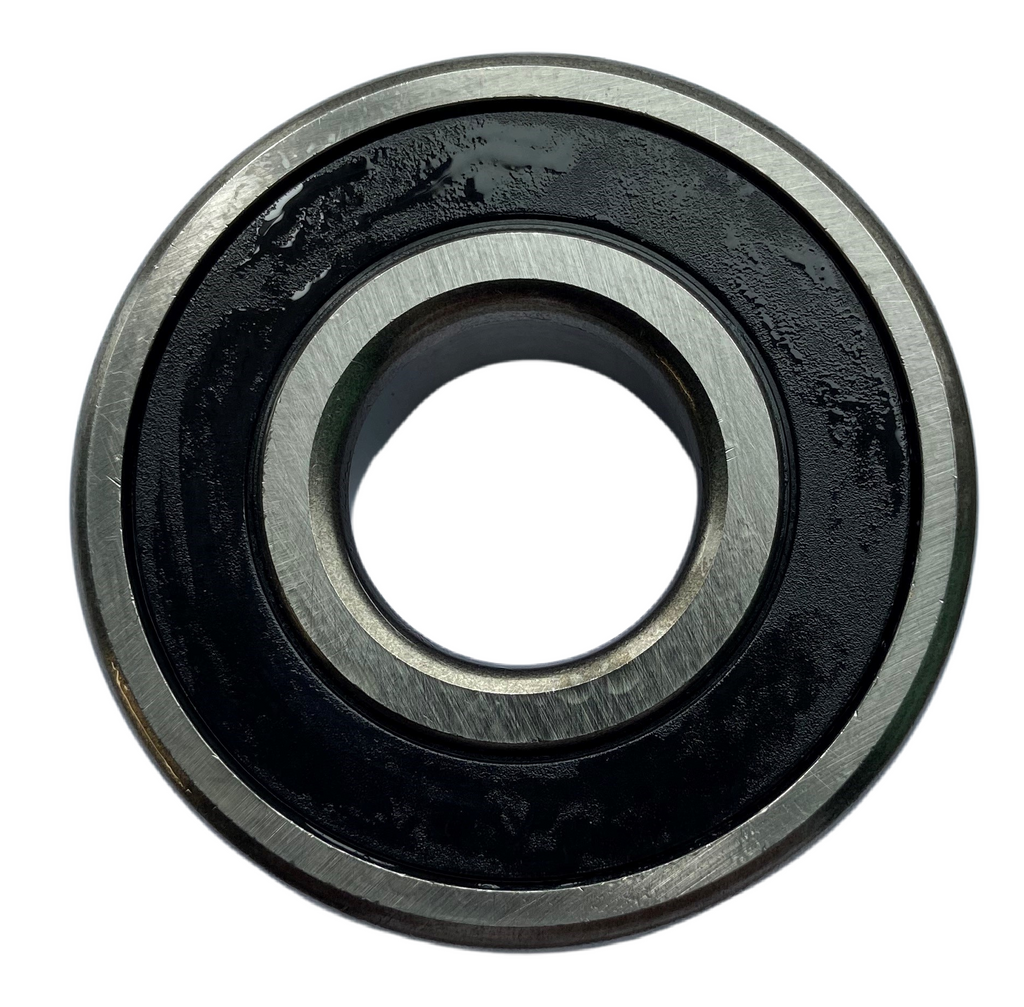

  • 1 x Spigot bearing – 971110

Part Numbers

  • Zetor clutch kit: 93942026

  • Clutch assembly reference: 50021901

  • Clutch drive plate reference: 50021902

  • Zetor second-stage clutch release bearing: 934825

  • Zetor first-stage clutch release bearing: 935172

  • Zetor spigot bearing: 971110

Specifications

  • Main clutch diameter: 280 mm

  • Main clutch drive plate: 13 splines

  • Clutch arrangement: Two-stage

  • Clutch assembly supplied with pressure plate and friction drive plate

  • First-stage and second-stage clutch release bearings included

  • Spigot bearing: 6304-2RSR-C3

  • Spigot bearing dimensions: 20 mm internal diameter x 52 mm external diameter x 15 mm width

  • Spigot bearing: Double-sealed, C3 internal clearance

Suitable for Zetor Models

Zetor Major

  • Major 80

Suitable for Zetor Major 80 tractors fitted with the corresponding clutch assembly and bearing arrangement.

Quantity

1 x Complete clutch kit containing:

  • 1 x Clutch assembly with drive plate

  • 1 x First-stage clutch release bearing

  • 1 x Second-stage clutch release bearing

  • 1 x Spigot bearing

Important Fitment Information

Different clutch assemblies and bearing arrangements may be fitted depending on tractor model, year of manufacture, transmission specification and serial number.

Please check clutch kit part number 93942026, the clutch diameter, spline count and bearing part numbers against your original components before ordering.

This clutch kit is intended for compatible Zetor Major tractors and should not be confused with clutch kits for the Zetor Super, Proxima, Proxima Plus or Forterra ranges.

If you are unsure about compatibility, please contact us with your tractor model, serial number and photographs of the existing clutch components.

Delivery

Delivery can be arranged at an additional cost. Please contact us for further information.

A VAT invoice will be provided.

A VAT invoice will be provided.
