Description
Replacement power steering filter element for selected Zetor tractors fitted with the corresponding hydraulic power steering reservoir and filtration system.
Designed to filter contaminants and debris from the power steering hydraulic oil, helping protect the steering pump and associated hydraulic components during normal operation.

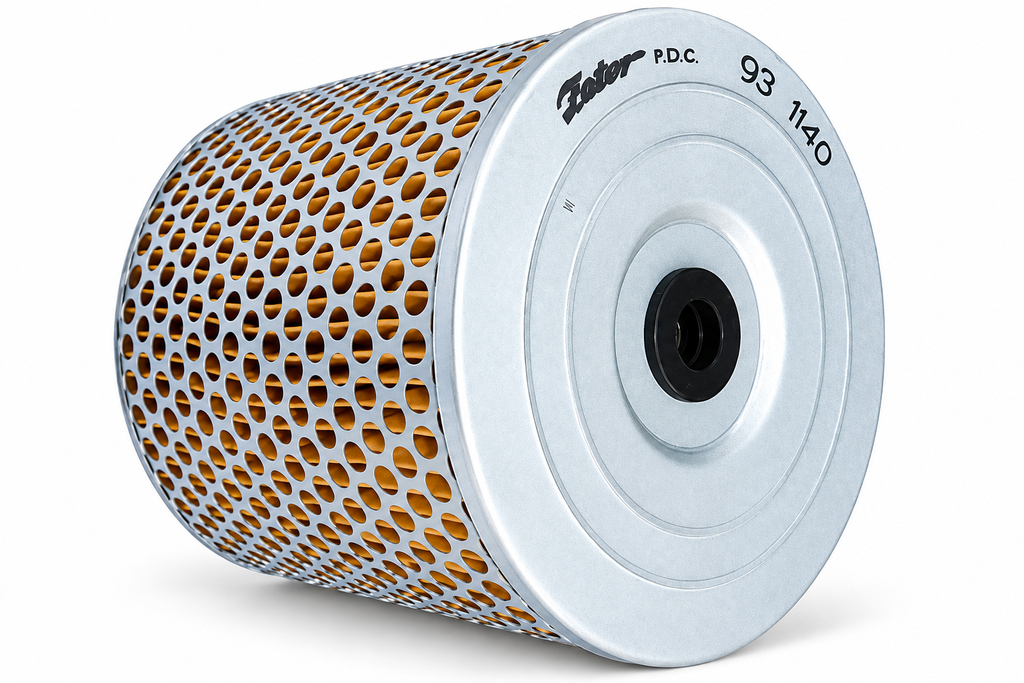

This cylindrical filter element features a perforated metal outer casing and internal filtration media, providing a replacement for the corresponding original filter during routine servicing or power steering system maintenance.
Part Numbers
-
Zetor: 931140
-
Alternative reference: 93-1140
-
Sparex equivalent: S.64449
Specifications
-
Component: Power steering filter element
-
Application: Hydraulic power steering system
-
Filter type: Replaceable cartridge element
-
Outside diameter: 125 mm
-
Inside diameter: 16 mm
-
Overall height: 120 mm
-
Construction: Cylindrical element with perforated metal outer casing
-
Installation: Inside the corresponding power steering filter housing / reservoir
-
Quantity: 1 filter element
Dimensions are supplier-listed specifications and should be checked against the original filter before ordering.
Suitable for Zetor Models
Zetor UR I – Earlier Models
-
5911
-
5945
-
6911
-
6945
Zetor UR I – Later Models
-
5211
-
5245
-
6211
-
6245
-
7211
-
7245
-
7245H
-
7711
-
7711 Turbo
-
7745
-
7745 Turbo
Zetor 40 Series
-
3320
-
3340
-
4320
-
4340
-
5320
-
5340
-
5340H
-
6320
-
6340
-
7320
-
7340
Zetor UR III
-
7520
-
7540
-
8520
-
8540
-
9520
-
9540
-
10520
-
10540
Suitable for selected tractors fitted with the corresponding power steering filter housing and reservoir arrangement.
Quantity
1 x Power steering filter element.
Important Fitment Information
Zetor tractors can be fitted with different power steering systems, reservoirs and filter arrangements depending on model, production year and specification.
This filter is intended for the corresponding power steering oil filtration system and should not be confused with the main hydraulic system filters or other filter elements fitted to Zetor tractors.
Please check part number 931140, the filter dimensions, central mounting hole, reservoir type and photographs against your existing filter before ordering.
For compatible applications, the filter is fitted inside the power steering oil reservoir. It is not a complete reservoir assembly.
If you are unsure about compatibility, please contact us with your tractor model, serial number and photographs or dimensions of the existing filter and power steering reservoir.
