Description
Pair of replacement hydraulic brake slave cylinders for selected Zetor Proxima and 40 Series tractors fitted with the corresponding hydraulic braking system.
These brake slave cylinders are designed to operate the tractor's braking mechanism by transferring hydraulic pressure to the brake components, helping provide effective and controlled braking operation.
Both cylinders are identical and are NOT HANDED. The same part number can be used on either side of the compatible braking system.
Set Includes
-

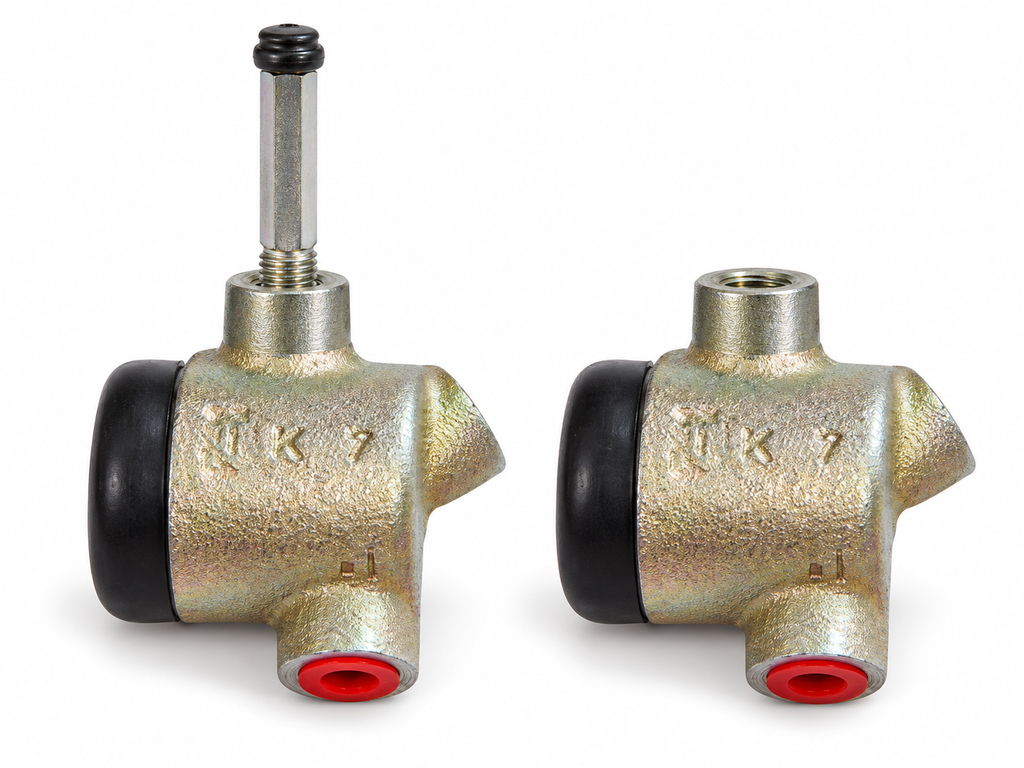

2 x Brake slave cylinders – 930954
Part Numbers
-
Zetor: 930954
-
Alternative reference: 93-0954
-
Quantity supplied: 2 x Identical cylinders
Specifications
-
Component: Hydraulic brake slave cylinder
-
Application: Tractor hydraulic braking system
-
Type: Brake operating cylinder
-
Construction: Cast-metal cylinder body
-
Finish: Silver-coloured metal
-
Hydraulic connection: Threaded connection
-
Fitment: Non-handed – suitable for either side of the corresponding brake assembly
-
Approximate weight: 0.455 kg per cylinder
-
Quantity: 2 cylinders
Suitable for Zetor Models
Zetor 40 Series / Super
-
3321
-
3341
-
4321
-
4341
-
5321
-
5341
-
6321
-
6341
-
7321
-
7341
Zetor Proxima
-
6421
-
6441
-
7421
-
7441
-
8421
-
8441
Later Zetor Proxima Models
-
Proxima 65
-
Proxima 70
-
Proxima 75
-
Proxima 80
-
Proxima 85
-
Proxima 90
-
Proxima 95
Zetor Proxima Plus / Proxima Power
Selected Proxima Plus and Proxima Power tractors fitted with the corresponding hydraulic brake cylinder arrangement.
Model compatibility depends on the tractor's original braking system, production year and specification.
Quantity
1 x Pair of brake slave cylinders containing:
-
2 x Zetor brake slave cylinders – 930954
Total: 2 identical, non-handed brake slave cylinders.
Important Fitment Information
Zetor tractors can be fitted with different hydraulic braking systems and slave cylinder arrangements depending on model, production year and specification.
These cylinders are NOT left-hand or right-hand specific. Both have the same part number, 930954, and are interchangeable between sides on compatible brake assemblies.
Please check the original part number, cylinder dimensions, hydraulic connections, mounting arrangement and photographs against your existing components before ordering.
These cylinders should not be confused with different handed brake slave cylinders, brake master cylinders or other brake operating cylinders fitted to earlier Zetor models.
As these components form part of the tractor's braking system, correct installation and bleeding are essential. The braking system should be thoroughly checked and tested before returning the tractor to operation.
If you are unsure about compatibility, please contact us with your tractor model, serial number and photographs of the existing brake cylinders or components.
