Description
Replacement turbo exhaust pipe for selected Zetor UR III and Forterra tractors fitted with the corresponding turbocharged exhaust system.
This vertical exhaust pipe is designed to replace the original exhaust stack, directing exhaust gases upwards and away from the tractor.

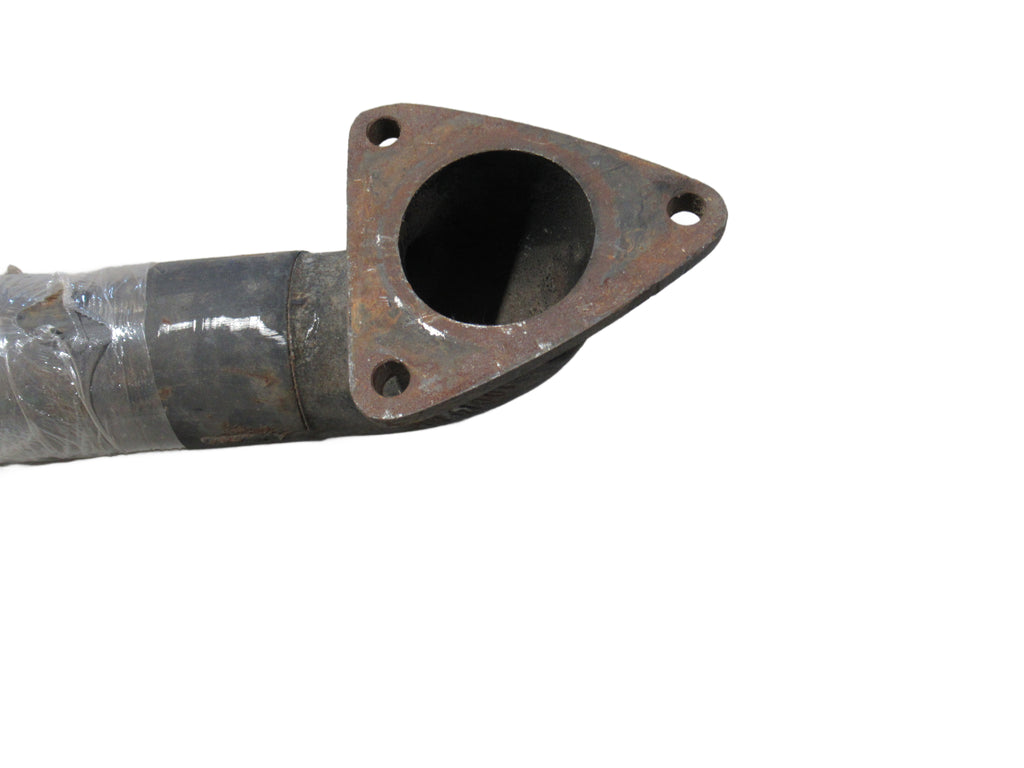

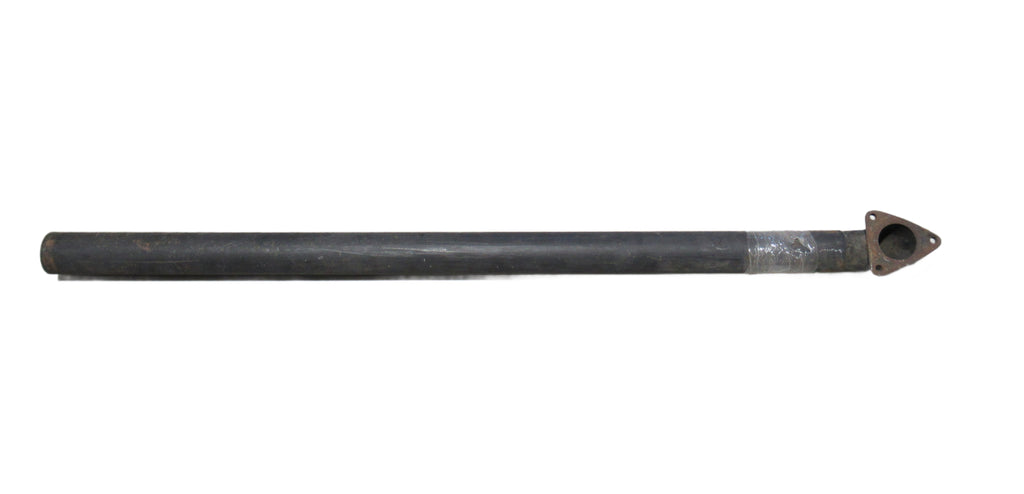

Featuring a long tubular construction with an angled lower connection and three-bolt mounting flange, it is suitable for replacing a damaged, corroded or worn original exhaust pipe.
Part Numbers
-
Zetor: 10014010
-
Alternative reference: 10.014.010
-
Associated aftermarket reference: 10014040 (subject to exhaust configuration)
Specifications
-
Component: Turbo exhaust pipe / exhaust stack
-
Application: Tractor engine exhaust system
-
Exhaust type: Turbo exhaust
-
Design: Long vertical tubular exhaust
-
Lower connection: Angled exhaust inlet
-
Mounting: Three-bolt flanged connection
-
Construction: Metal
-
Finish: Dark grey / painted metal
-
Position: Vertical exhaust arrangement
-
Quantity: 1 exhaust pipe
Suitable for Zetor Models
Zetor UR III
-
8520
-
8540
-
9520
-
9540
-
10520
-
10540
Zetor Forterra
-
Selected 8641, 9641, 10641 and 11441 tractors fitted with the corresponding exhaust arrangement
Selected other Forterra models may also use this exhaust, depending on production year, engine configuration and original exhaust system.
Compatibility must be confirmed against the original exhaust and tractor serial number.
Quantity
1 x Turbo exhaust pipe – 10014010.
Mounting bolts, gaskets, exhaust clamps and other accessories are not included unless specifically supplied with the item.
Important Fitment Information
Zetor tractors can be fitted with different exhaust systems, pipes, silencers and mounting arrangements depending on model, production year, cab design, engine and specification.
This exhaust is intended for tractors fitted with the corresponding vertical turbo exhaust pipe and three-bolt flanged connection.
Please check Zetor part number 10014010, the overall exhaust length, pipe diameter, lower angled connection, mounting flange, fixing-hole positions and photographs against your existing component before ordering.
Part number 10014040 is also associated with certain exhaust applications, but the two exhaust types should not automatically be assumed interchangeable without checking their physical configuration.
This exhaust should not be confused with the different boxed-type silencers, side-feed exhaust assemblies or other exhaust pipes fitted to Zetor tractors.
If you are unsure about compatibility, please contact us with your tractor model, serial number and photographs of your existing exhaust system or component.
