Replacement engine oil pump kit for selected Zetor UR III, Proxima and Forterra tractors fitted with the corresponding engine lubrication system.
This comprehensive oil pump kit contains the principal components required for replacing or overhauling the corresponding engine oil pump assembly, helping maintain correct oil circulation and lubrication of essential engine components.
Suitable for repairing a worn, damaged or failed engine oil pump on compatible Zetor tractors.
Part Numbers
-
Zetor: 78007000
-
Alternative reference: 78.007.000
-
Associated assembly reference: 78007001
-
Alternative kit reference: 78007000/01

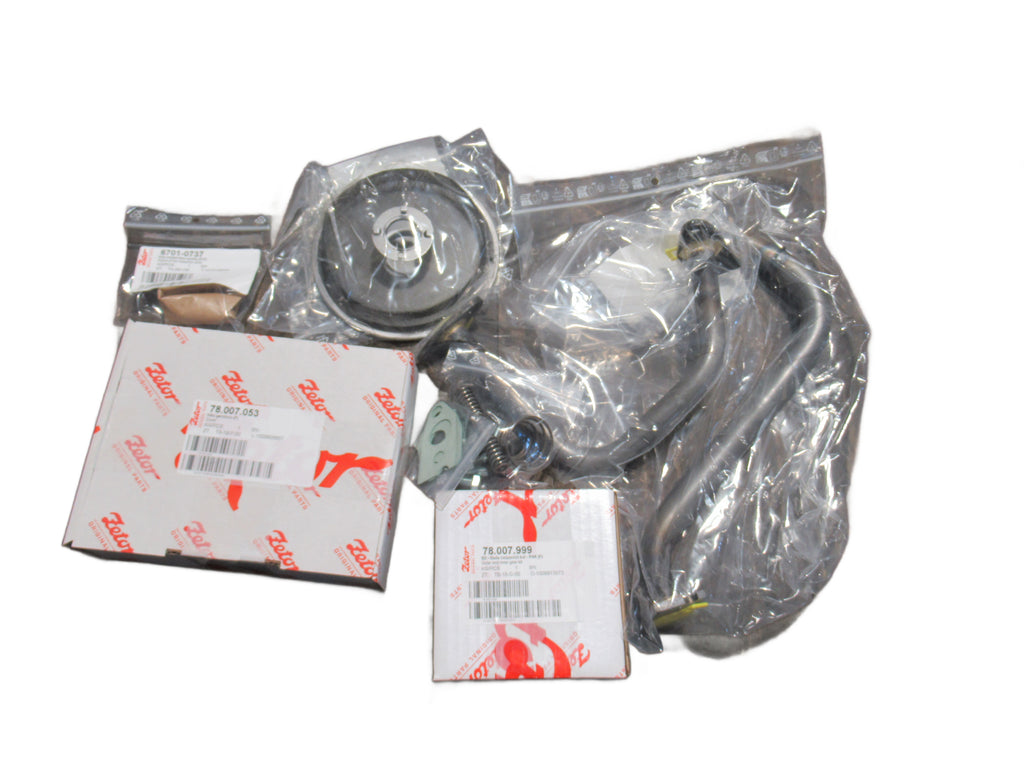

Oil Pump Kit Components
The standard eight-component kit is catalogued as follows:
-
1 x Inner oil pump gear – 78007052
-
1 x Outer oil pump gear – 78007051
-
1 x Oil pump cover – 78007053
-
1 x Oil delivery pipe – 78007050
-
1 x Oil suction pipe – 78007060
-
1 x Pressure relief spring – 78007058
-
1 x Oil suction strainer – 78007070
-
1 x Oil pump washer – 78007057
Associated mounting hardware may be supplied depending on the kit configuration. Please confirm the exact contents of the supplied kit before ordering.
Specifications
-
Component: Engine oil pump kit
-
Application: Engine lubrication system
-
Tractor series: Zetor UR III / Proxima / Forterra
-
Pump type: Gear-type engine oil pump
-
Construction: Metal pump components
-
Application: Engine-mounted oil circulation system
-
Approximate weight: 2.2 kg (supplier-listed complete assembly)
-
Quantity: 1 oil pump kit
Suitable for Zetor Models
Zetor UR III
-
Zetor 7520
-
Zetor 7540
-
Zetor 8520
-
Zetor 8540
-
Zetor 9520
-
Zetor 9540
-
Zetor 10520
-
Zetor 10540
Zetor Proxima
-
Zetor 6421
-
Zetor 6441
-
Zetor 7421
-
Zetor 7441
-
Zetor 8421
-
Zetor 8441
Zetor Forterra
-
Zetor 8641
-
Zetor 9641
-
Zetor 10641
-
Zetor 11441
-
Zetor 12441
Selected later Proxima, Proxima Plus, Proxima Power and Forterra tractors may also use the corresponding engine oil pump components, depending on engine type and specification.
All model applications are subject to the tractor being fitted with the corresponding 78007000 oil pump arrangement.
Function
The engine oil pump draws oil from the engine sump through the suction pipe and strainer before circulating it under pressure through the engine's lubrication system.
The internal pump gears generate the required oil flow, while the pressure relief mechanism helps regulate oil pressure.
Correct oil circulation is essential for lubricating the crankshaft, bearings and other internal engine components, reducing friction and helping prevent premature engine wear.
Quantity
1 x Engine oil pump kit – 78007000.
Kit components and associated hardware should be checked against the supplied item.
Important Fitment Information
Zetor tractors can be fitted with different engine oil pumps depending on model, production year, engine type and specification.
This kit is intended for compatible Zetor UR III, Proxima and Forterra engines using the corresponding 78007000 oil pump assembly.
Please check Zetor part number 78007000 or 78007000/01, the internal pump components, gear configuration, oil pipe connections, mounting arrangement and photographs against your original oil pump before ordering.
This kit should not be confused with the different engine oil pumps fitted to earlier Zetor Crystal tractors, including part numbers 80007029, 83007019 and 86007019, or the separate tractor hydraulic lift pumps.
Correct installation, cleanliness of the oil galleries and verification of engine oil pressure are essential before returning the tractor to operation.
Installation should be carried out in accordance with the appropriate manufacturer's service instructions.
If you are unsure about compatibility, please contact us with your tractor model, serial number, engine details and photographs of the existing oil pump or components.
